IRON WORKERS AND PUCHING MACHINES

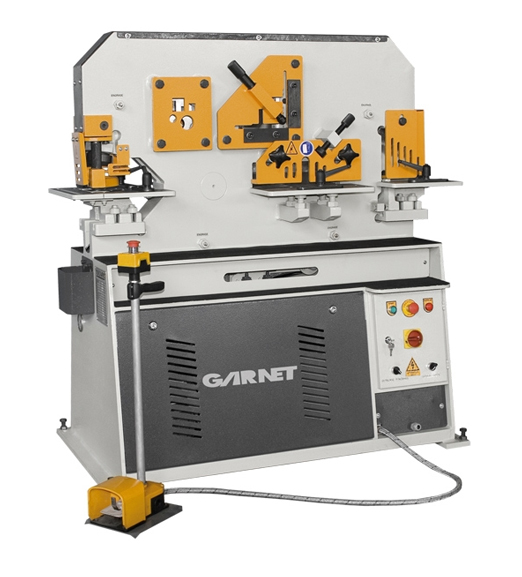

B Series

Machines with 5 high-capacity work stations.
The punch-carrier is standard fitted with two slots for the punches, with a 38 mm diameter capacity, without the need for any other accessory.
It is controlled by a hydraulic cylinder with a tilt system for cutting and punching.
They are designed to occupy the minimum space in workshops, ironworks and sheet-makers.
Two standard capacities: 45 Tons (Mod. 45 B) and 60 Tons (Mod. 60 B).



cizallas universales

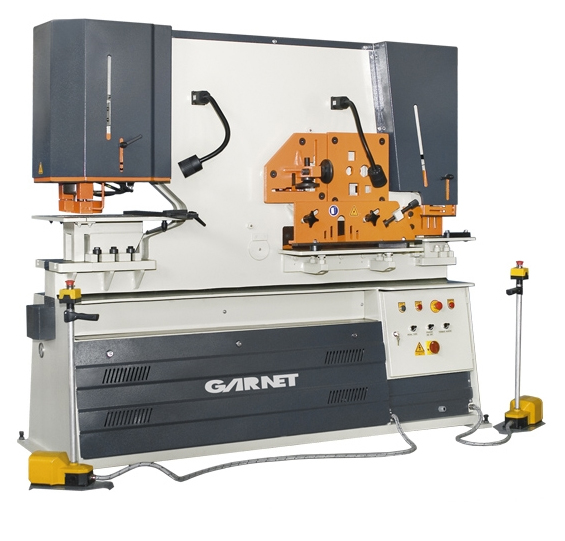

Serie SD

Machines with 5 high-capacity work stations.
The punching unit includes as standard two slots for the punches, with diameter capacity of up to 57 mm, without the need for any other accessory.
Controllable via two hydraulic cylinders with a vertical cut and punch system.
The vertical punch system guarantees a higher resilience of the punches and also a better finish for the moulds.
They have as standard an elastic hold-down for the punch designed to minimize deformities.
Two simultaneous work stations.
Three standard capacities: 65 Tons (Mod. 65 and 65 SD), 85 Tons (Mod. 85 S and 85 SD) and 115 Tons (Mod. 115 S and 115 SD).



punzonadoras Garnet
P Series


Punch machines designed with a greater throat depth in order to avoid problems when punching large sheets. The punching unit includes as standard two slots for the punches with diameter capacity of up to 57 mm, no aditional accessories necessary.
The lower mechanised table has a slots in "T" which allows you to install tools, moulds and dies.
Three standard capacities: 65 Tons (Mod. 65 P), 85 Tons (Mod. 85P) and 115 Tons (Mod. 115P).
